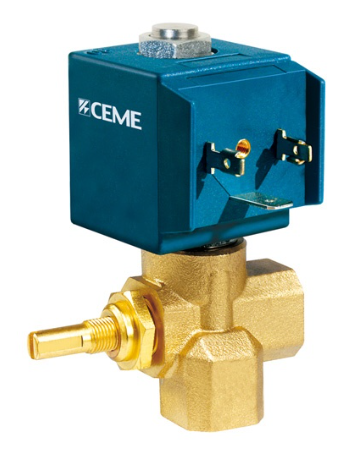

CEME 6724 Multi Purpose Solenoid Valve
Multi-purpose water and air valve
Rating plate
Brand
CEME
Model
CEME 6724
Stock
On order
Specification
- Model
- 6724
- Manufacturer
- CEME Group
- Main series
- 67
- Main application
- Multi purpose
- Inlet
- G 1/4
- Outlet
- G 1/4
- Operation
- Direct acting
- Type
- 2/2 way NC (normally closed)
- Seals material
- FKM
- M.O.P.D. AC
- 10.00 Bar (145.04 Psi)
- M.O.P.D. DC
- 7.00 Bar (101.53 Psi)
- Minimum differential working pressure
- 0.00 Bar (0.00 Psi)
- Orifice diameter
- 2.80mm (0.11 inch)
- Flow Kv
- 0.307 m³/h (0.265 Gal/min)
- Standard voltage
- 230 V 50 Hz
- Other available voltages
- 24 V 50 Hz, 12 V 50 Hz, 110/120 V 60 Hz, 12 V DC, 24 V DC
No downloads are published for this model. Data sheets, operator manuals and dimension drawings are available on request.
CEME 6724 is a multi purpose solenoid valve from the CEME Group main series 67. Direct acting 2/2 way normally closed valve with G 1/4 inlet and G 1/4 outlet. Features FKM seals, 2.80mm orifice diameter, and 0.307 m³/h flow rate. Suitable for water and air applications. Supplied in South Africa by Unicorp.
The CEME 6724 is a compact, direct-acting solenoid valve from the CEME Series 67 main range. With a 2.80mm orifice, FKM seals, and G 1/4 connections, it delivers reliable on/off control for water and air applications in laundry, dry cleaning, and industrial processing equipment. Zero-pressure differential operation means it opens and closes reliably even at low pressures.
The CEME 6724 is suitable for water and air. It is not rated for inert gas, flammable gas, steam, light oil, or refrigerants. FKM seals make it well-suited to water and compressed air applications.
No. The CEME 6724 is a direct-acting valve with a minimum differential working pressure of 0 Bar. This means it operates reliably even with no pressure at the inlet, making it suitable for low-pressure or gravity-fed systems.
Ask about this model
Price and availability: CEME 6724 Multi Purpose Solenoid Valve
Tell us what you are running and we will confirm the price, the lead time and whether this is the right model for it.
Questions
Answers before you enquire
- What media is the CEME 6724 suitable for?
- The CEME 6724 is suitable for water and air. It is not rated for inert gas, flammable gas, steam, light oil, or refrigerants. FKM seals make it well-suited to water and compressed air applications.
- Does the CEME 6724 require a minimum inlet pressure?
- No. The CEME 6724 is a direct-acting valve with a minimum differential working pressure of 0 Bar. This means it operates reliably even with no pressure at the inlet, making it suitable for low-pressure or gravity-fed systems.
- What is the maximum operating pressure of the CEME 6724?
- The maximum operating pressure differential is 10 Bar for AC operation and 7 Bar for DC operation.
- What voltages are available for the CEME 6724?
- Standard voltage is 230V 50Hz. Other options include 24V 50Hz, 12V 50Hz, 110/120V 60Hz, 12V DC, and 24V DC. Contact Unicorp to order a specific voltage variant.
- Can I use the CEME 6724 in a washing machine or dishwasher?
- Yes. The CEME 6724 is commonly used as a water inlet solenoid valve in commercial laundry machines, dishwashers, and similar appliances requiring controlled water or air flow.
