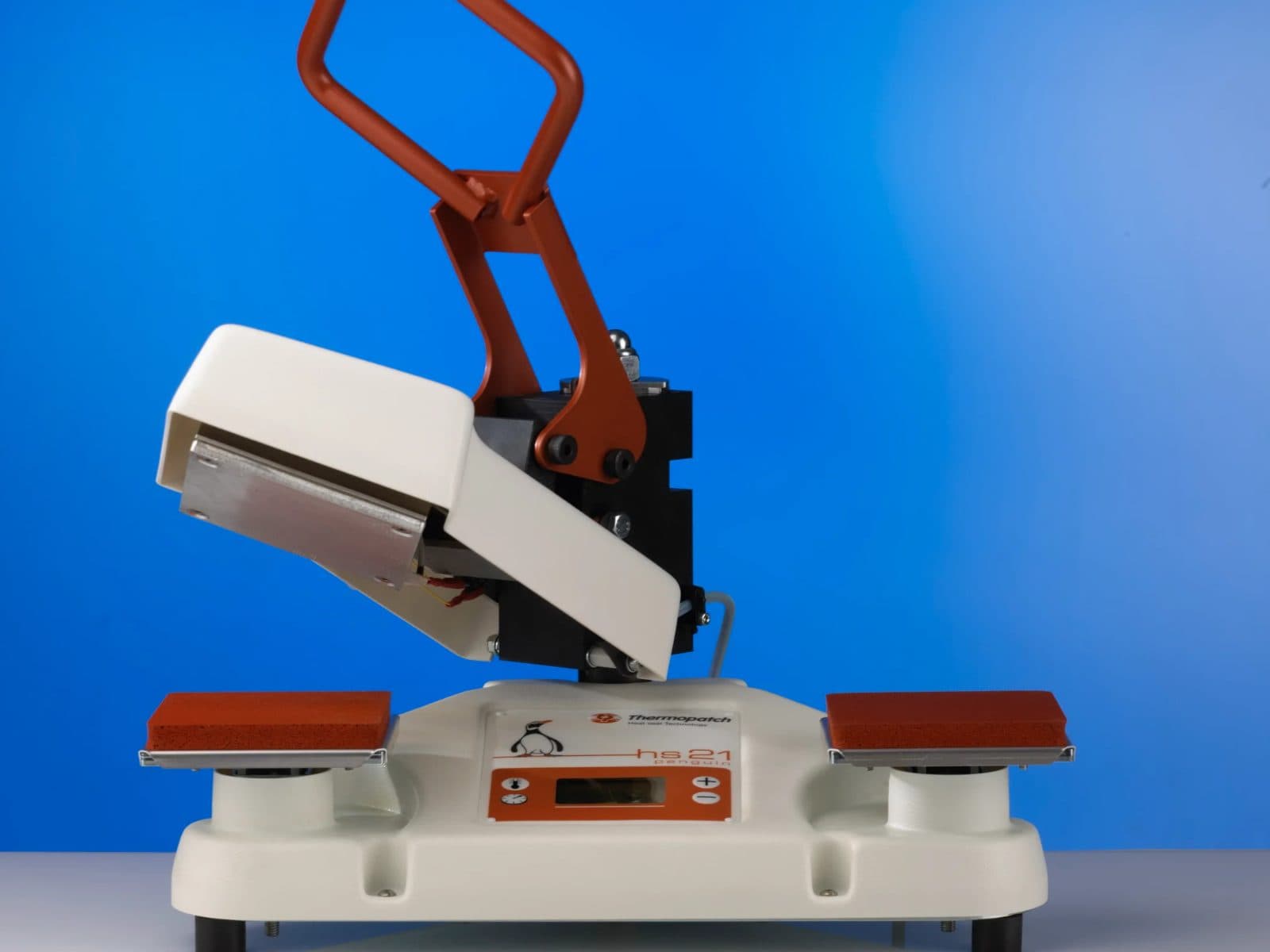

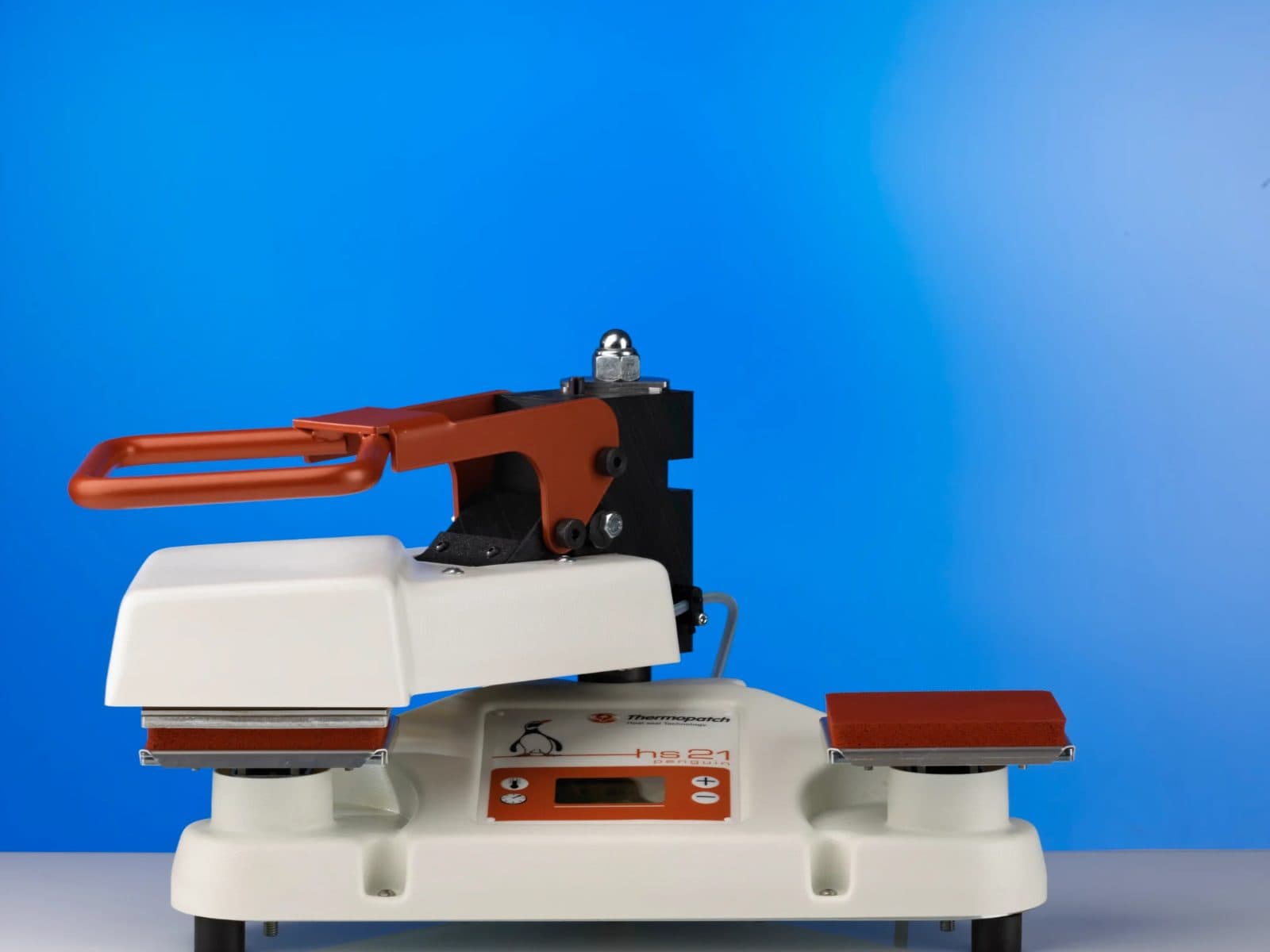

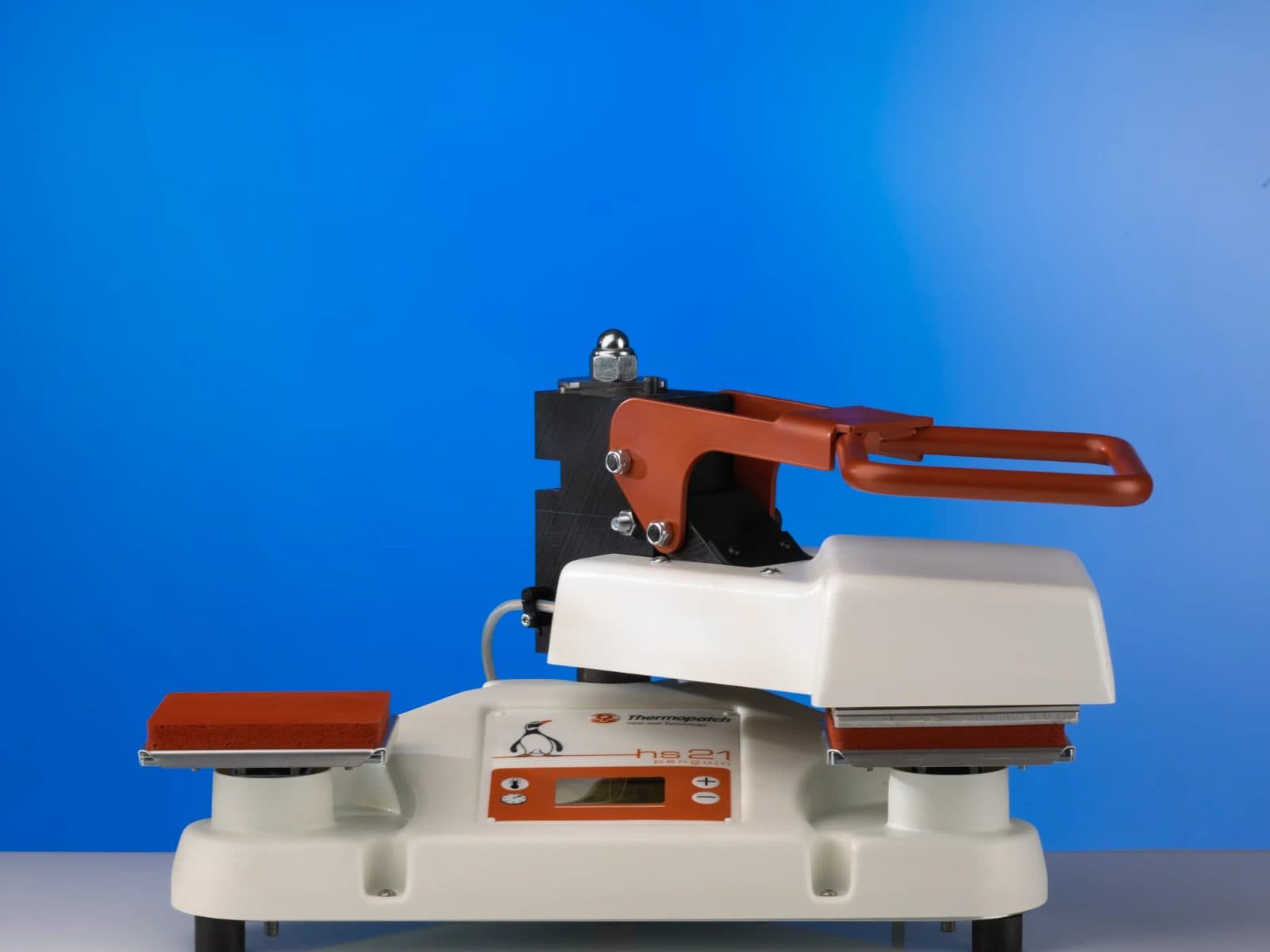

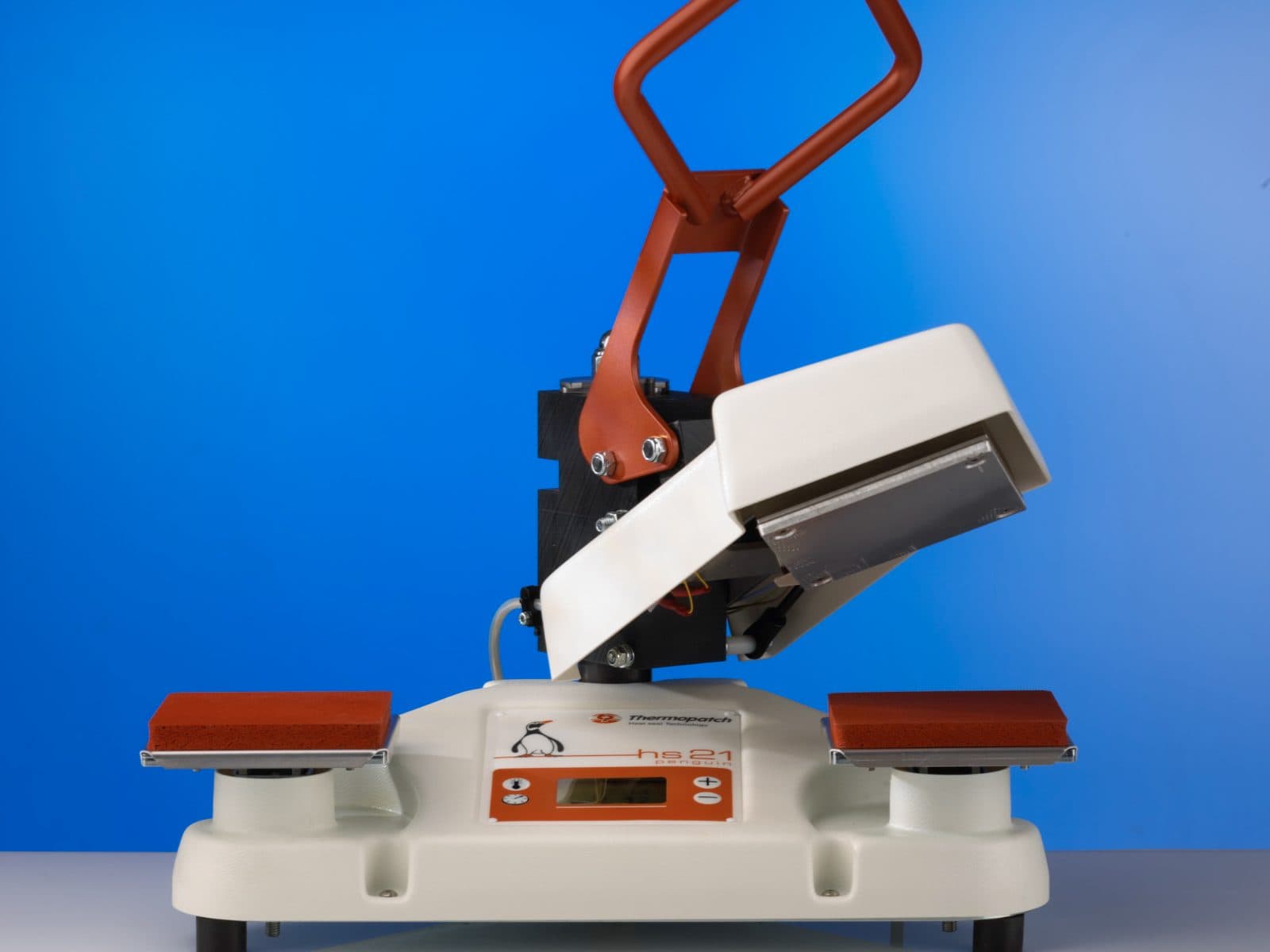

Thermopatch HS-21-SQR Manual Heat Seal Press for Labels and Patches
Square format heat seal press
The Thermopatch HS-21-SQR is a compact and portable manual heat seal press designed for applying labels, patches, transfers, and emblems to textiles. Ideal for dry cleaners, commercial laundries, hotels, uniform services, and garment marking operations processing small and medium-sized batches, the HS-21-SQR features two press platens for quick application of heat seal labels. With accelerated warm-up time of less than one minute and full digital control via graphical display, this energy-efficient heat seal machine requires no compressed air and operates at under 70 decibels. The 120 x 120 mm sealing plates provide versatile application capability with temperature control from 50 to 225°C and adjustable timer from 0 to 240 seconds. Weighing just 16 kg, the HS-21-SQR is supplied in South Africa by Unicorp for professional garment identification and marking applications.
Compact heat seal press with digital control for fast label application
The Thermopatch HS-21-SQR offers the latest heat sealing technology in a compact and portable design suitable for operations with limited floor space. The two press platens allow quick application of heat seal labels, patches, transfers, and emblems to garments and textiles. The graphical display provides clear indication of current press status including real-time temperature and heat seal time, ensuring operators can monitor the sealing process accurately. Accelerated warming brings the sealing plates to operating temperature in less than one minute, reducing idle time and improving productivity. The energy-saving sleep mode automatically reduces power consumption during periods of inactivity, lowering operating costs. Operating without compressed air eliminates the need for air compressor systems, simplifying installation and reducing facility requirements. The quiet operation at under 70 decibels makes the HS-21-SQR suitable for use in customer-facing environments such as hotel laundries and dry cleaning reception areas.
Key benefits
- Two press platens for quick application: Dual pressing surfaces allow fast application of heat seal labels, patches, transfers, and emblems to garments with consistent heat and pressure.
- Accelerated warm-up time under one minute: Fast heat-up reduces waiting time and allows operators to begin label application almost immediately after switching on the machine.
- Full digital control with graphical display: Clear display shows current temperature, heat seal time, and press status for accurate monitoring and consistent sealing results.
- Compact and lightweight design: Weighing just 16 kg with dimensions of 315 x 465 x 420 mm, the HS-21-SQR is easy to position on workbenches and can be relocated as needed.
- No compressed air required: Eliminates the need for air compressor systems, simplifying installation and reducing facility infrastructure requirements and operating costs.
- Energy-saving sleep mode: Automatic power reduction during idle periods lowers electricity consumption and operating costs while maintaining quick return to operating temperature.
- Quiet operation under 70 decibels: Low noise level makes the machine suitable for use in customer-facing areas and multi-operator environments without excessive noise disturbance.
- Wide temperature range 50 to 225°C: Adjustable temperature control accommodates different label types and fabric materials for versatile application capability.
- Adjustable timer 0 to 240 seconds: Precise time control ensures optimal heat seal bonding for different label materials and garment constructions.
- 120 x 120 mm sealing plates: Generous sealing area accommodates standard label sizes for customer identification tags, hotel name labels, uniform identification, and garment tracking.
- CE certification: Meets European safety standards for professional textile equipment, ensuring safe operation in commercial environments.
Technical Specifications
Optional Accessories
The following optional accessories are available for the Thermopatch HS-21-SQR heat seal press: Press cushions in various sizes including 60 x 20 mm (pair), 70 x 30 mm (pair), 100 x 25 mm (pair), and 115 x 115 mm (single). Self-adhesive Teflon sheets are also available for protecting sealing surfaces. Contact Unicorp for guidance on selecting appropriate accessories for your specific label application requirements.
Why Choose Unicorp
FAQs
The HS-21-SQR can apply heat seal labels, patches, transfers, and emblems to textiles. This includes customer identification labels for dry cleaners, hotel name labels, uniform identification labels, garment tracking tags, and decorative patches. The adjustable temperature (50 to 225°C) and timer (0 to 240 seconds) accommodate different label materials and adhesive types for versatile application capability.
Yes. The HS-21-SQR is specifically designed for processing small and medium-sized batches of textiles. The compact design, lightweight construction (16 kg), and fast warm-up time make it ideal for dry cleaners, hotel laundries, and uniform services with moderate labeling volumes. The machine requires no compressed air and operates quietly, making it suitable for operations with limited space and infrastructure.
The HS-21-SQR features accelerated warming and reaches operating temperature in less than one minute. This fast heat-up time reduces idle waiting and allows operators to begin label application almost immediately after switching on the machine, improving productivity in busy operations.
No. The HS-21-SQR operates without compressed air, eliminating the need for air compressor systems. This simplifies installation, reduces facility infrastructure requirements, and lowers operating costs. The machine operates on standard 230V electrical supply only.
The 120 x 120 mm sealing plates can accommodate labels up to this size. This is suitable for standard customer identification labels, hotel name labels, uniform tags, and most commercial garment marking applications. Optional press cushions in smaller sizes (60 x 20 mm, 70 x 30 mm, 100 x 25 mm) are available for applying smaller labels with optimal pressure distribution.
Yes. Unicorp supplies Thermopatch heat seal labels compatible with the HS-21-SQR including customer identification labels for dry cleaners, hotel name labels, uniform identification tags, and garment tracking labels. Contact Unicorp for guidance on label selection, customization options, and ordering for your specific garment marking requirements.
